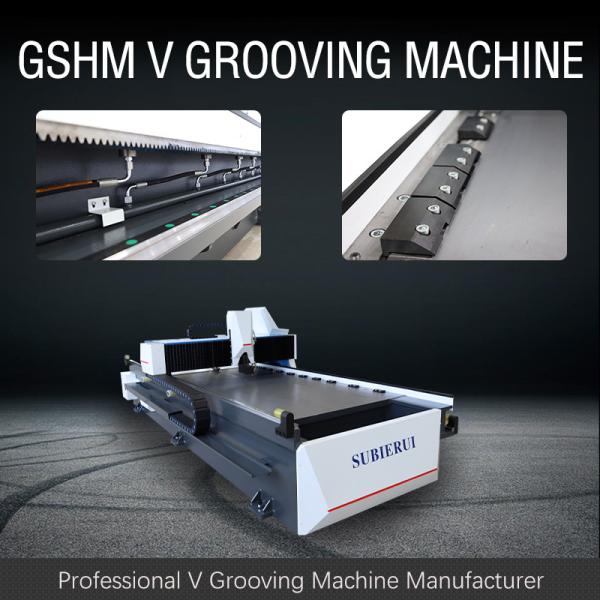

CNC V Grooving Machine With Hydraulic Foot Drive For Door - Model
1225
Jianmeng Technology has been focusing on CNCv grooving equipment
for 13 years and is the manufacturer with the most types of CNCv
grooving machines in China. It is a comprehensive enterprise that
integrates the research and development, production, sales, and
after-sales service of CNC v grooving equipment. Jianmeng
Technology has a standardized rack production workshop, with
technological innovation as its core advantage, and has
collaborated with multiple international accessory manufacturers
for research and development. Currently, it has multiple
intelligent CNC v grooving equipment. We assist in providing
high-quality and exclusive grooving equipment solutions for
industries such as stainless steel processing, architectural
decoration, bathroom, kitchenware, door industry, automotive
manufacturing, hotel kitchen equipment, elevator equipment,
advertising signage, anti-skateboards, display props, hardware
products, and so on.
Jianmeng Technology has continuously pursued technological
innovation and unremittingly efforts to improve the production
process.
We have strictly controlled the product quality and witnessed the
rapid and solid development of the brand benefiting from the
high-quality products.
The quality inspection is implemented in strict accordance with
international standards to ensure the successful delivery of each
piece of equipment.
Jianmeng Technology not only has excellent equipment but also can
provide considerate after-sales service. From project planning and
start-up to production tracking and operation training, to
equipment maintenance, supply and maintenance of spare parts, we
provide you with all-round services. ty. Our engineers can analyze
and evaluate the current situation of your equipment together with
you, and work out various schemes for you, such as small-scale
equipment customization and complete equipment transformation,
according to your needs and wishes. For all projects, we will work
with you to develop a personalized maintenance plan according to
your technical needs, to avoid unexpected downtime that causes high
costs, prolong the service life of the equipment, and improve its
value. Please take advantage of these advantages to ensure process
safety and investment security to the greatest extent. Of course,
the equipment made by other manufacturers is no exception
We manufacture ultra-precision sheet metal equipment that upholds
the spirit of pursuing intelligent machinery to the customer's
satisfaction, supply 100% technical independent maintenance
services and perfect logistics support, and provide a strong backup
force for customers' production lines.
Technical data of v groove cutting machine 1250×4000
| NO. | Name | Quantity |
| 1 | Maximum width of machinable sheet | 1250 mm |
| 2 | Maximum length of machinable sheet | 4000 mm |
| 3 | Maximum thickness of machinable sheet (stainless steel) | 5.0 mm |
| 4 | Minimum thickness of machinable sheet | 0.4 mm |
| 5 | Minimum distance from V-shaped groove to edge | 8.0 mm |
| 6 | Table flatness | ± 0.03 mm |
| 7 | Maximum shaft speed parallel to X-axis | 120 m/min |
| 8 | Maximum shaft speed parallel to Y1-axis | 60 m/min |
| 9 | Maximum shaft speed parallel to Y2-axis | 60 m/min |
| 10 | Maximum shaft speed parallel to Z-axis | 10 m/min |
| 11 | Axis positioning accuracy (X, Y1, Y2, Z) | 0.015 mm |
| 12 | Axis resolution (X, Y1, Y2, Z) | 0.001 mm |
| 13 | X-axis servo motor power | 5.5 kW |
| 14 | Y1-axis servo motor power | 1.0 kW |
| 15 | Y2-axis servo motor power | 1.0 kW |
| 16 | Z-axis servo motor power | 1.0 kW |
| 17 | Length | 5100 mm |
| 18 | Width | 2250 mm |
| 19 | Hight | 1550 mm |
