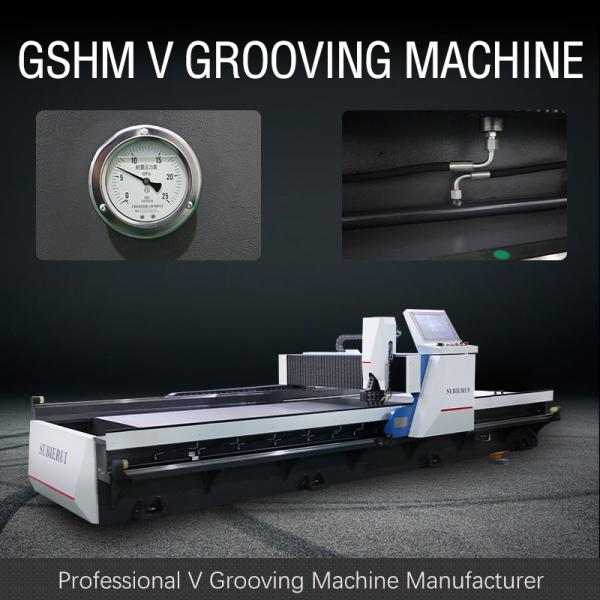

1532 CNC V Grooving Machine For Shower Room Glass V Grooving Machine

Ask Lasest Price
Brand Name :	SUBIERUI
Model Number :	GSHM 1532
Certification :	ISO9001,CE
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	30sets per mouth
Delivery Time :	7-25 days

Add to Cart

Product Details
Company Profile

1532 CNC V Grooving Machine For Shower Room Glass V Grooving Machine

CNC V Grooving Machine for Shower Room Glass and Cupboard - Model 1532

Automatic Cycle Programming
The system can automatically cycle the workpiece according to the amount of cycle input without input one by one, which greatly reduces programming time and improves productivity.

Our services

Today, many enterprises must survive in international competition, and production costs will increase due to obsolete equipment, unexpected downtime, capacity problems or under-trained employees.

The company has excellent equipment and after-sales service. From project planning and start-up to production tracking and operation training, to equipment maintenance, spare parts supply and maintenance, we will provide you with a full range of services.

Bending effect display

Based on the input data, the system can display the bending effect diagram in real time to avoid the loss of raw material caused by input errors and input omissions.

No.	Name		Parameter	Unit
1	Max. Width of metal sheet		1250	mm
2	Max. Length of metal sheet		4000	mm
3	Max. thickness(Stainless steel)		5	mm
4	Min. Thickness of metal sheet		0.4	mm
5	Min.distance of the V from edge		8	mm
6	Max. cutting speed of X axis		120	m/min
7	Max .return speed of the X axis		120	m/min
8	Max.distance of Y axis		1250	mm
9	Resolution in Y1 axis		0.001	mm
10	Repeated positioning accuracy		±0.01	mm
11	Resolution in z axis		0.001	mm
12	Repeated positioning accuracy		±0.01	mm
13	Motor power	X axis	5.5	kW
13	Motor power	Y1.Y2.Z axis	1.0	kW
14	Overall dimension	Length	5900	mm
		Width	2000
		Height	1550

1532 CNC V Grooving Machine For Shower Room Glass V Grooving Machine
