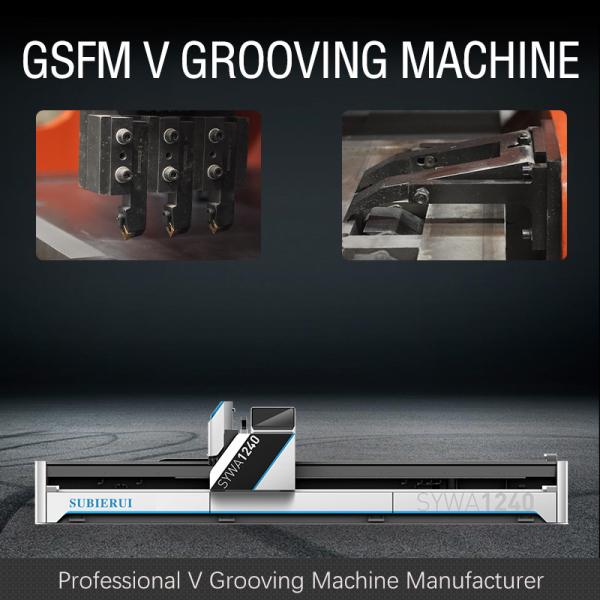

High Speed Auto V Grooving Machine Anti Skateboard Metal Grooving Machine 1232

Ask Lasest Price
Brand Name :	SUBIERUI
Model Number :	GSFM
Certification :	ISO9001,CE
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	30sets per mouth
Delivery Time :	7-45 days

Add to Cart

Product Details
Company Profile

High Speed Auto V Grooving Machine Anti Skateboard Metal Grooving Machine 1232

High Speed Automatic V Grooving Machine for Anti-Skateboard Metal Furniture - Model 1232

Intelligent obstacle avoidance of presser feet
The system automatically calculates the cutting position of each step of the workpiece, fixes the presser foot to automatically reserve the cutting space for the tool holder, and realizes intelligent obstacle avoidance.

Customer Service and Maintenance

The shutdown of machine tools and equipment has caused a high cost to the enterprise, so SUBIERUI is doing its best to solve the problem quickly. We offer a 24/7 global service that gives you immediate access to trained technicians. Even with regard to the difficult bending technology, we can help you out. We have a dedicated service team and an efficient logistic system to provide suitable spare parts and fast access to the field in a short time, and equipment maintenance is not limited to our own equipment, nor is the equipment from other manufacturers.

Automatic calculation of inner and outer diameters

The system can automatically calculate the slot distance according to the input size and the selected inner or outer diameter function. Reduce operation difficulty and labor cost.

No.	Name		Parameter	Unit
1	Max. Width of metal sheet		1250	mm
2	Max. Length of metal sheet		3200	mm
3	Max. thickness(Stainless steel)		5	mm
4	Min. Thickness of metal sheet		0.4	mm
5	Min.distance of the V from edge		10	mm
6	Max. cutting speed of X axis		120	m/min
7	Max .return speed of the X axis		120	m/min
8	Max.distance of Y axis		1250	mm
9	Resolution in Y1 axis		0.001	mm
10	Repeated positioning accuracy		±0.01	mm
11	Resolution in z axis		0.001	mm
12	Repeated positioning accuracy		±0.01	mm
13	Motor power	X axis	5.5	kW
		Y1	3.0
		Y2.U,Z axis	1.0
14	Overall dimension	Length	5100	mm
		Width	2580
		Height	1550

High Speed Auto V Grooving Machine Anti Skateboard Metal Grooving Machine 1232
