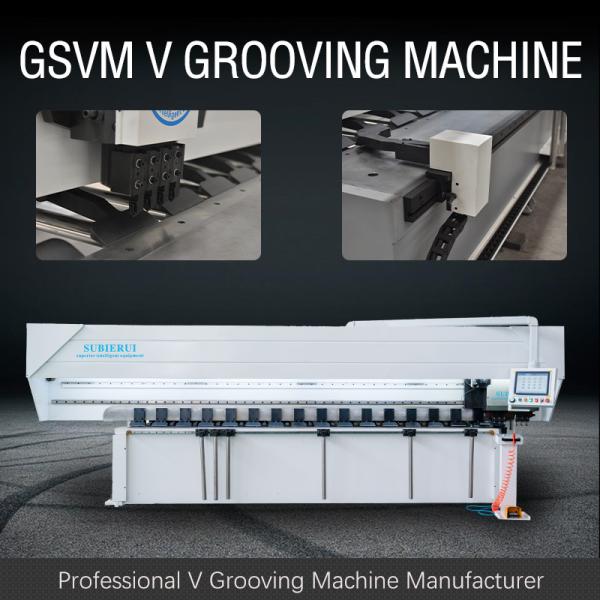

    CE Sheet Grooving Machine High Speed V Grooving Machine Anti Skateboard Public Spaces

    Ask Lasest Price
    Brand Name : SUBIERUI
    Model Number : GSVM
    Certification : ISO9001,CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 30 sets per mouth
    Delivery Time : 7-25 days
    • Product Details
    • Company Profile

    CE Sheet Grooving Machine High Speed V Grooving Machine Anti Skateboard Public Spaces

    Sheet Metal Grooving Machine With Anti-Skateboard Function For Public Spaces


    Keep all functions of the standard model
    Automatic calculation of internal and external diameters, automatic cycle programming, visual picture editing, bending effect display, tool holder self-lubricating system, intermittent working hydraulic station, etc.


    Spare parts Service
    The equipment and units in SUBIERUI have a long service life. The original parts can be found in our spare parts warehouse regardless of the year the equipment was shipped. Our technical service personnel are familiar with all manufacturers' equipment, from the initial assembly of new equipment to the selection of spare parts, and can provide you with professional assistance, even from other manufacturers..
    Stable and reliable electrical
    The fully enclosed drag chain, high-quality sports cable and electronic components ensure the stability and reliability of the electrical system of the SUBIERUI slot planer. High quality is accompanied by its ultra-high service life and durability, so that it can cope with the long time non-stop working state.
    No.NameParameterUnit
    1Max. Width of metal sheet1250mm
    2Max. Length of metal sheet4000mm
    3Max. thickness(Stainless steel)6mm
    4Min. Thickness of metal sheet0.4mm
    5Min.distance of the V from edge10mm
    6Max. cutting speed of X axis120m/min
    7Max .return speed of the X axis120m/min
    8Max.distance of Y axis1250mm
    9Resolution in Y1 axis0.001mm
    10Repeated positioning accuracy±0.01mm
    11Resolution in z axis0.001mm
    12Repeated positioning accuracy±0.01mm
    13Motor powerX axis5.5kW
    Y.Z axis1.0
    14Overall dimensionLength5700mm
    Width2350
    Height2000
