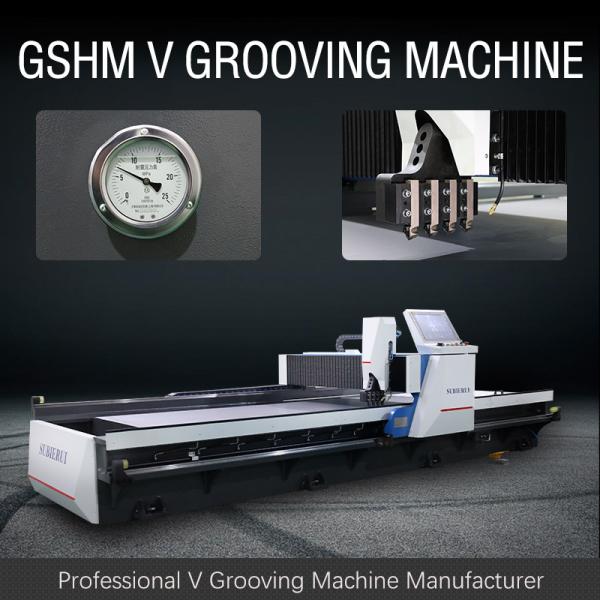

    1232 High Speed V Grooving Machine For Kitchen Cabinet Metal Grooving Machine

    Ask Lasest Price
    Brand Name : SUBIERUI
    Model Number : GSHM 1232
    Certification : ISO9001,CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 25sets per mouth
    Delivery Time : 7-25 days
    • Product Details
    • Company Profile

    1232 High Speed V Grooving Machine For Kitchen Cabinet Metal Grooving Machine

    1232 High Speed V Grooving Machine for Kitchen Cabinet Stainless Steel Processing
    Energy efficiency
    The whole machine is driven by high power full servo. With the careful adjustment of SUBIERUI engineers, the hourly rate of our new slot plough can be reduced by up to 20% compared with the three-phase asynchronous motor under the same power. The high energy efficiency and low maintenance SUBIERUI slot planer can significantly improve the production energy efficiency at the same time, it can also plane the slot speed and production efficiency.

    Customer Service and Maintenance
    The shutdown of machine tools and equipment has caused a high cost to the enterprise, so SUBIERUI is doing its best to solve the problem quickly. We offer a 24/7 global service that gives you immediate access to trained technicians. Even with regard to the difficult bending technology, we can help you out. We have a dedicated service team and an efficient logistic system to provide suitable spare parts and fast access to the field in a short time, and equipment maintenance is not limited to our own equipment, nor is the equipment from other manufacturers.
    The crossbeam of GSHM v grooving machine is driven by high-precision helical rack and guide rail with grinding helical gear. The moving speed can be adjusted by frequency conversion. The dual guide rail structure makes the crossbeam chip feeding process stable and efficient.
    No.NameParameterUnit
    1Max. Width of metal sheet1250mm
    2Max. Length of metal sheet3200mm
    3Max. thickness(Stainless steel)5mm
    4Min. Thickness of metal sheet0.4mm
    5Min.distance of the V from edge8mm
    6Max. cutting speed of X axis120m/min
    7Max .return speed of the X axis120m/min
    8Max.distance of Y axis1250mm
    9Resolution in Y1 axis0.001mm
    10Repeated positioning accuracy±0.01mm
    11Resolution in z axis0.001mm
    12Repeated positioning accuracy±0.01mm
    13Motor powerX axis5.5kW
    Y1.Y2.Z axis1.0
    14Overall dimensionLength5100mm
    Width2000
    Height1550

    1232 High Speed V Grooving Machine For Kitchen Cabinet Metal Grooving Machine
