1240mm High Speed V Grooving Machine For Elevator Panel Sheet Metal Grooving Machine

Ask Lasest Price
Brand Name :	SUBIERUI
Model Number :	GSHM
Certification :	ISO9001,CE
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	30sets per mouth
Delivery Time :	7-25 days

Add to Cart

Product Details
Company Profile

1240mm High Speed V Grooving Machine For Elevator Panel Sheet Metal Grooving Machine

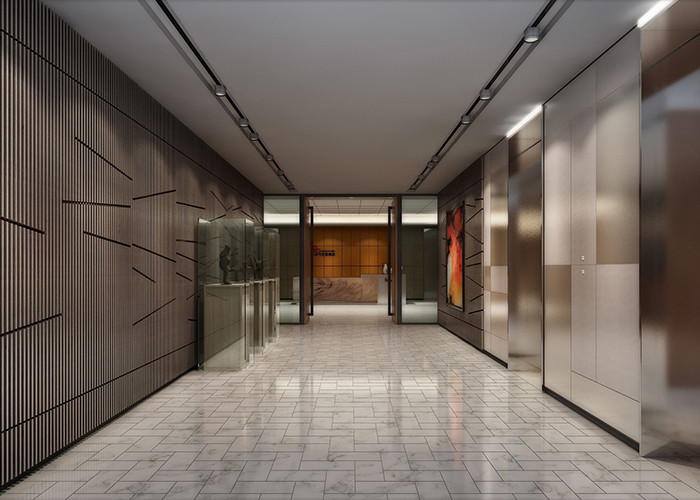

High Speed V Grooving Machine For Elevator Panel Stainless Steel Processing

Simple and intelligent system

According to the entered inner diameter or outer diameter after bending, the system automatically calculates the slot distance when processing, and displays the two-dimensional sketch map after bending, capacity and required sheet width. Easy to operate, easy to learn and understand, reduce the demand for talents and reduce labor costs.

Our services

Today, many enterprises must survive in international competition, and production costs will increase due to obsolete equipment, unexpected downtime, capacity problems or under-trained employees.

The company has excellent equipment and after-sales service. From project planning and start-up to production tracking and operation training, to equipment maintenance, spare parts supply and maintenance, we will provide you with a full range of services.

Energy efficiency

The whole machine is driven by high power full servo. With the careful adjustment of SUBIERUI engineers, the hourly rate of our new slot plough can be reduced by up to 20% compared with the three-phase asynchronous motor under the same power. The high energy efficiency and low maintenance SUBIERUI slot planer can significantly improve the production energy efficiency at the same time, it can also plane the slot speed and production efficiency.

No.	Name		Parameter	Unit
1	Max. Width of metal sheet		1250	mm
2	Max. Length of metal sheet		4000	mm
3	Max. thickness(Stainless steel)		5	mm
4	Min. Thickness of metal sheet		0.4	mm
5	Min.distance of the V from edge		8	mm
6	Max. cutting speed of X axis		120	m/min
7	Max .return speed of the X axis		120	m/min
8	Max.distance of Y axis		1250	mm
9	Resolution in Y1 axis		0.001	mm
10	Repeated positioning accuracy		±0.01	mm
11	Resolution in z axis		0.001	mm
12	Repeated positioning accuracy		±0.01	mm
13	Motor power	X axis	5.5	kW
13	Motor power	Y1.Y2.Z axis	1.0	kW
14	Overall dimension	Length	5900	mm
		Width	2000
		Height	1550
