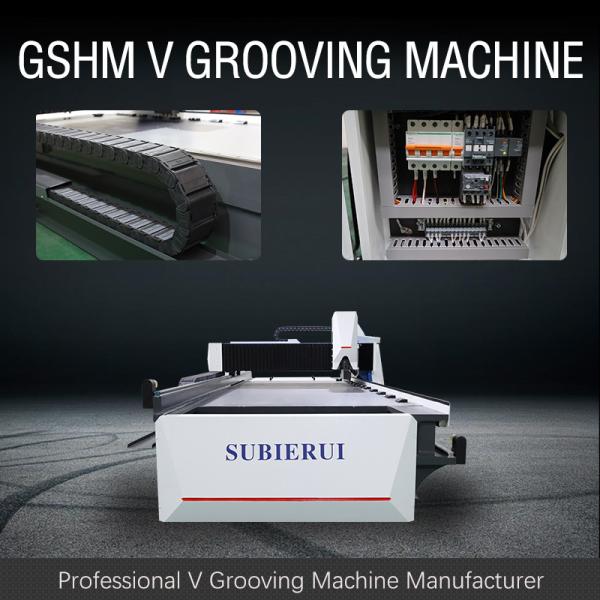

Precision V Groove Machine for Metal Fabrication in Elevator IndustryG

Automatic Cycle Programming
The system can automatically cycle the workpiece according to the amount of cycle input without input one by one, which greatly reduces programming time and improves productivity.

Spare parts Service
The equipment and units in SUBIERUI have a long service life. The original parts can be found in our spare parts warehouse regardless of the year the equipment was shipped. Our technical service personnel are familiar with all manufacturers' equipment, from the initial assembly of new equipment to the selection of spare parts, and can provide you with professional assistance, even from other manufacturers..

No.	Name		Parameter	Unit
1	Max. Width of metal sheet		1500	mm
2	Max. Length of metal sheet		4000	mm
3	Max. thickness(Stainless steel)		5	mm
4	Min. Thickness of metal sheet		0.4	mm
5	Min.distance of the V from edge		8	mm
6	Max. cutting speed of X axis		120	m/min
7	Max .return speed of X axis		120	m/min
8	Max.distance of Y axis		1250	mm
9	Resolution in Y axis		0.001	mm
10	Repeated positioning accuracy		±0.01	mm
11	Resolution in z axis		0.001	mm
12	Repeated positioning accuracy		±0.01	mm
13	Motor power	X axis	5.5	kW
		Y1,Y2,Z axis	1.0
14	Overall dimension	Length	5900	mm
		Width	2250
		Height	1550

.

Our Factory

Jianmeng Technology has been focusing on CNC v grooving machine for 13 years, and is the manufacturer with the most types of CNC v grooving machines in China. It is a comprehensive enterprise that integrates the research and development, production, sales, and after-sales service of CNC v grooving equipment. Jianmeng Technology has a standardized rack production workshop, with technological innovation as its core advantage, and has collaborated with multiple international accessory manufacturers for research and development. Currently, it has multiple intelligent CNC v grooving equipment. We assist in providing high-quality and exclusive grooving equipment solutions for industries such as stainless steel processing, architectural decoration, bathroom, kitchenware, door industry, automotive manufacturing, hotel kitchen equipment, elevator equipment, advertising signage, anti skateboards, display props, hardware products, and so on.
