6000mm CNC Sheet Metal Cutting Machine Kitchen Cabinet Making Machine

Ask Lasest Price
Brand Name :	JM
Model Number :	GSVM
Certification :	ISO9001,CE
Price :	Negotiate
Payment Terms :	T/T
Supply Ability :	30 sets per mouth
Delivery Time :	10-30days

Add to Cart

Product Details
Company Profile

6000mm CNC Sheet Metal Cutting Machine Kitchen Cabinet Making Machine

Customizable CNC Sheet Metal Cutting Machine for Kitchen Cabinet Manufacturers

Spare parts Service

The equipment and units in SUBIERUI have a long service life. The original parts can be found in our spare parts warehouse regardless of the year the equipment was shipped. Our technical service personnel are familiar with all manufacturers' equipment, from the initial assembly of new equipment to the selection of spare parts, and can provide you with professional assistance, even from other manufacturers..

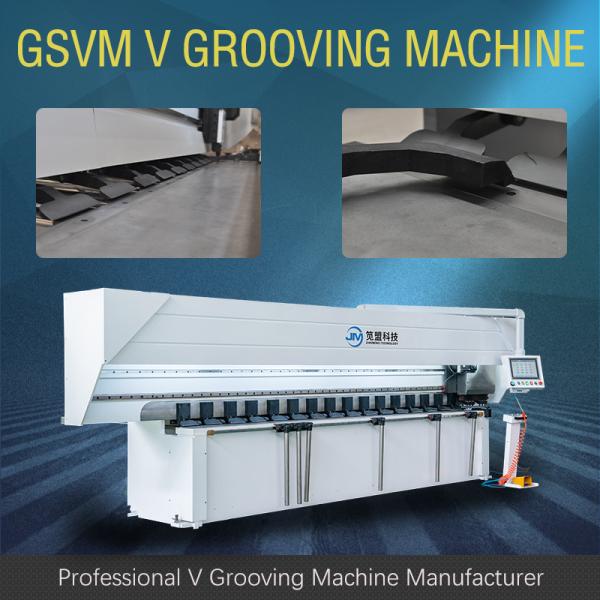

The whole GSVM v grooving machine is designed with a frame structure, and the worktable is made of low-alloy high-strength structural steel. The overall rigidity of the machine tool is excellent, solid and durable; The worktable surface adopts an integrated bottom film, which is formed at one time, and the mirror surface materials are processed without leaving marks; The machine tool processing process shall be strictly followed, and electric furnace tempering shall be adopted to eliminate welding stress and reduce equipment deformation; Ensure excellent painting effect through sand blasting; The frame is formed by the imported CNC stereo machining center through one-time clamping processing, ensuring the parallelism and perpendicularity of each mounting surface.

Intelligent obstacle avoidance of presser feet

The system automatically calculates the cutting position of each step of the workpiece, fixes the presser foot to automatically reserve the cutting space for the tool holder, and realizes intelligent obstacle avoidance.

No.	Name		Parameter	Unit
1	Max. Width of metal sheet		1500	mm
2	Max. Length of metal sheet		6000	mm
3	Max. thickness(Stainless steel)		6	mm
4	Min. Thickness of metal sheet		0.4	mm
5	Min.distance of the V from edge		10	mm
6	Max. cutting speed of X axis		120	m/min
7	Max .return speed of X axis		120	m/min
8	Max.distance of Y axis		1250	mm
9	Resolution in Y axis		0.001	mm
10	Repeated positioning accuracy		±0.01	mm
11	Resolution in z axis		0.001	mm
12	Repeated positioning accuracy		±0.01	mm
13	Motor power	X axis	5.5	kW
13	Motor power	Y,Z axis	1.0	kW
14	Overall dimension	Length	7700	mm
		Width	2600
		Height	2000
