Efficient CNC Sheet Metal Cutting Machine Shower Room Panel V Slotting Machine

Ask Lasest Price
Brand Name :	JM
Model Number :	GSDM
Certification :	ISO9001,CE
Price :	Negotiate
Payment Terms :	T/T
Supply Ability :	30 sets per mouth
Delivery Time :	10-30days

Add to Cart

Product Details
Company Profile

Efficient CNC Sheet Metal Cutting Machine Shower Room Panel V Slotting Machine

Efficient CNC Sheet Metal Cutting Machine for Shower Room Panel Production

Customization and modification of equipment

Consulting for new equipment is not the only solution when there is a need to adjust process flow, change materials or improve the utilization of existing capacity in production. Our engineers can work with you to analyze and assess the current situation of your equipment, and combine your needs and desires to develop a complete set of solutions for you, from small-scale equipment customization to equipment modification. We will work with you to develop personalized maintenance schemes for all projects according to your technical needs so as to avoid costly out-of-chapter downtime, ensure the service life of equipment and improve the value of equipment itself. Take advantage of these strengths to maximize process and investment safety. Of course, equipment manufactured by other manufacturers is no exception.

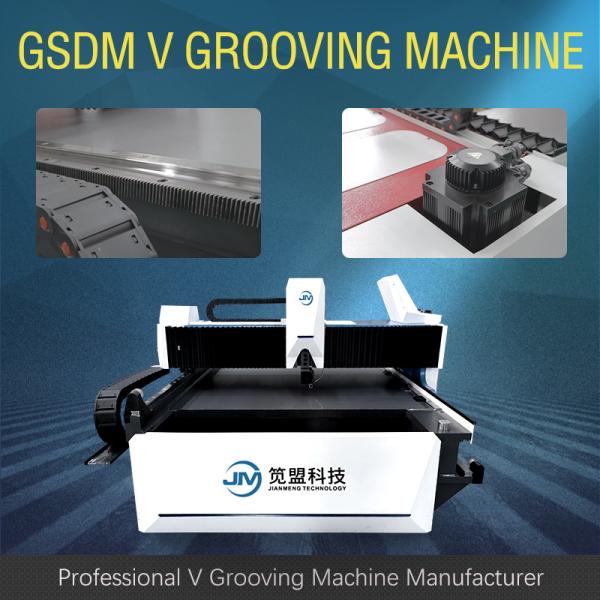

The materials to be processed by GSDM v grooving machine are fixed by hydraulic clamping system, and flexible clamping and unloading devices are used: high-precision guidance system, position measurement system and hydraulic balancing function, to meet the needs of processing board surface free of trauma as far as possible. The hydraulic pressure is adjustable and reliable. The hydraulic system is equipped with an accumulator for compensation. The motor works in a clearance manner to save energy and control oil temperature.

Double power

The equipment is jointly driven by two servo motors and two sets of gears and racks, with higher torque, faster speed and smoother operation.

Bending effect display

Based on the input data, the system can display the bending effect diagram in real time to avoid the loss of raw material caused by input errors and input omissions.

No.	Name		Parameter	Unit
1	Max. Width of metal sheet		1500	mm
2	Max. Length of metal sheet		3200	mm
3	Max. thickness(Stainless steel)		5	mm
4	Min. Thickness of metal sheet		0.4	mm
5	Min.distance of the V from edge		8	mm
6	Max. cutting speed of X axis		120	m/min
7	Max .return speed of X axis		120	m/min
8	Max.distance of Y axis		1250	mm
9	Resolution in Y axis		0.001	mm
10	Repeated positioning accuracy		±0.01	mm
11	Resolution in z axis		0.001	mm
12	Repeated positioning accuracy		±0.01	mm
13	Motor power	X1,X2 axis	5.0	kW
13	Motor power	Y1,Y2,Z axis	1.0	kW
14	Overall dimension	Length	5100	mm
		Width	2350
		Height	1550
